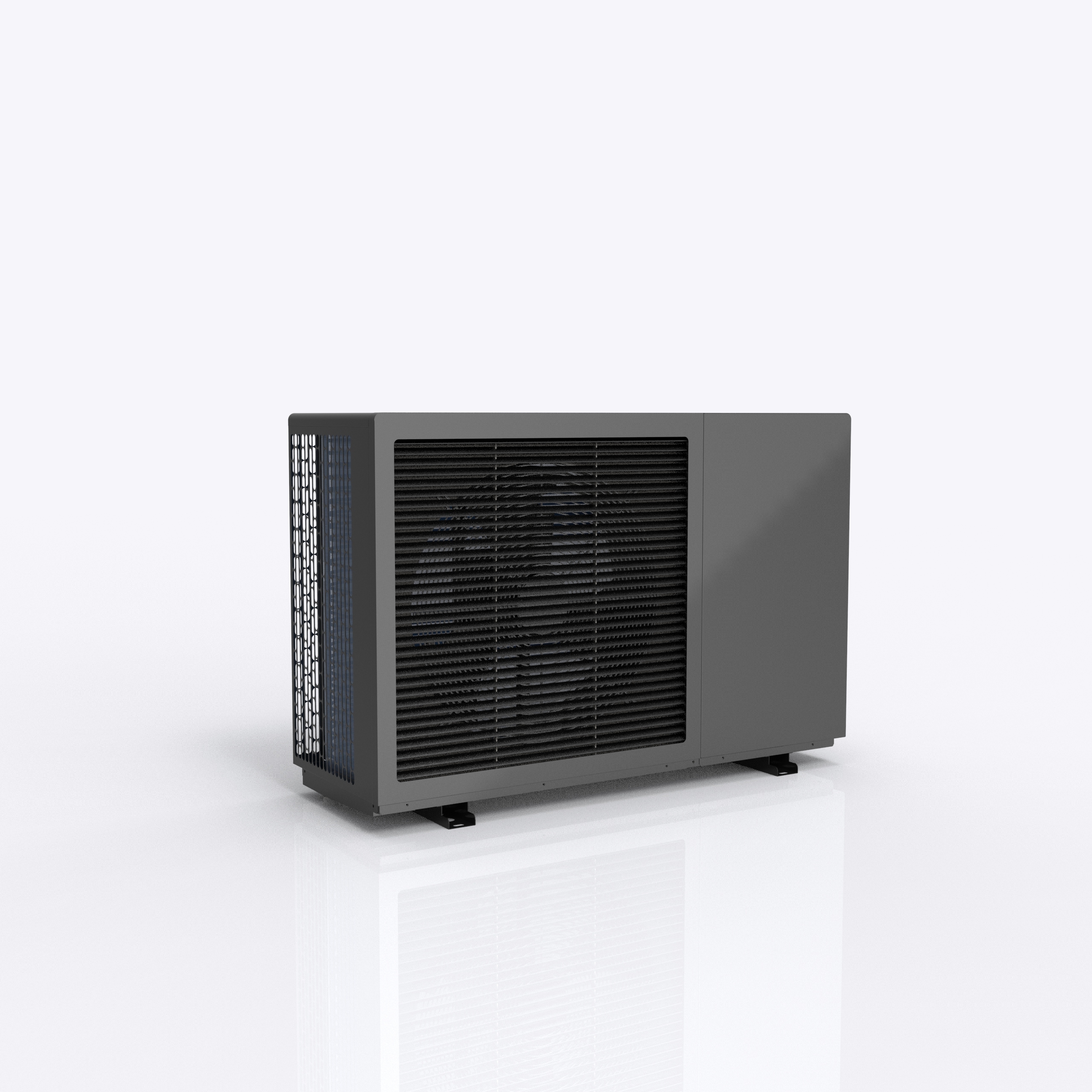

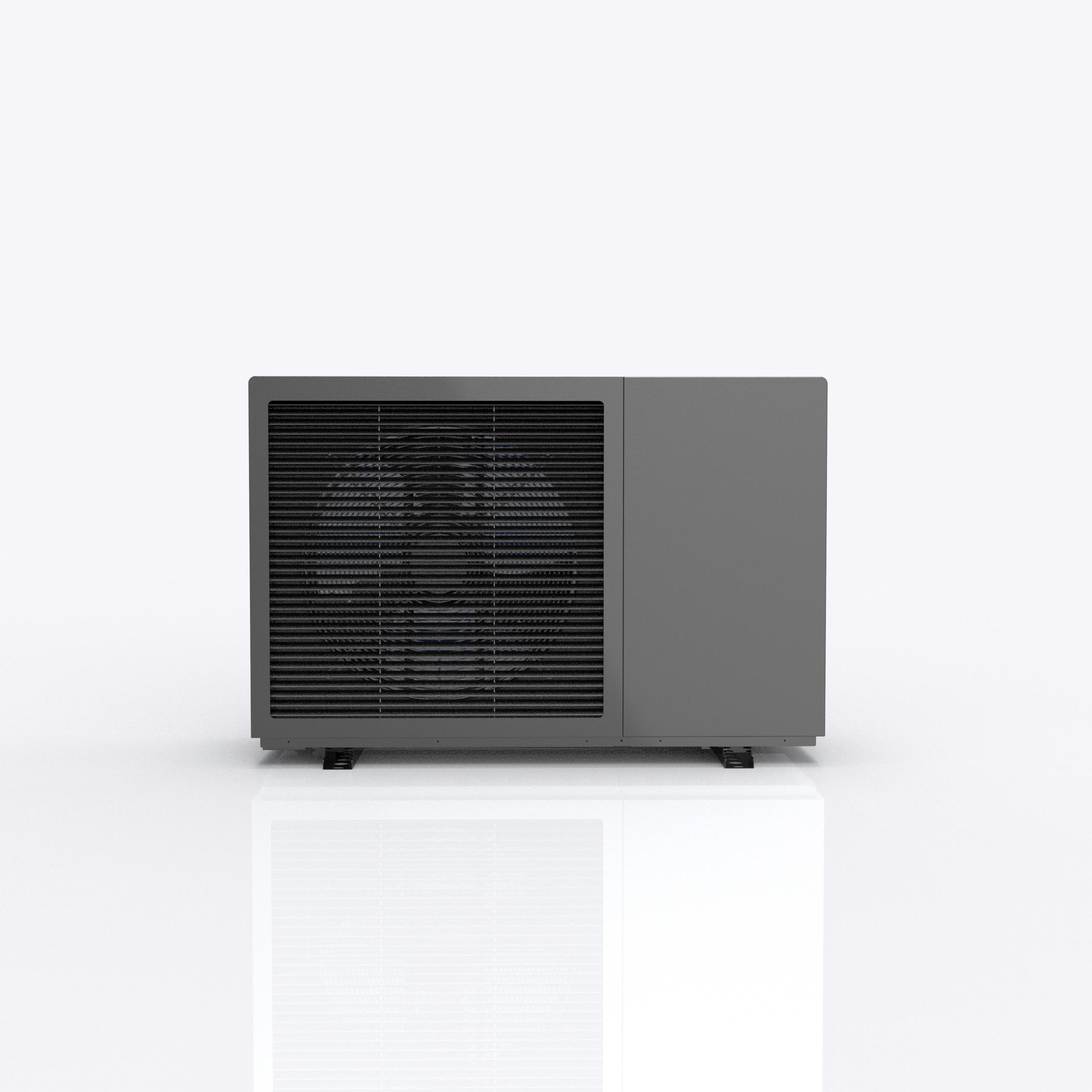

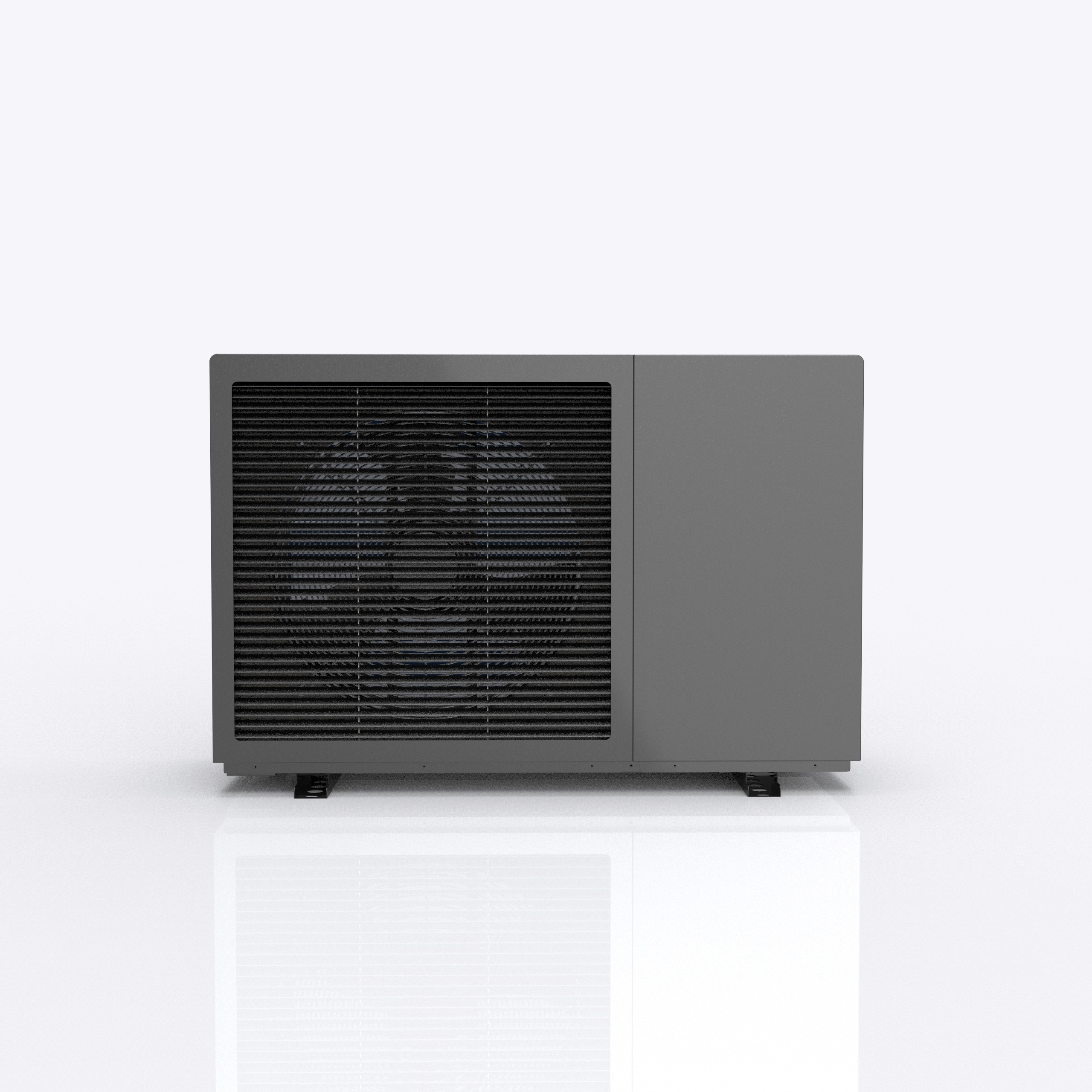

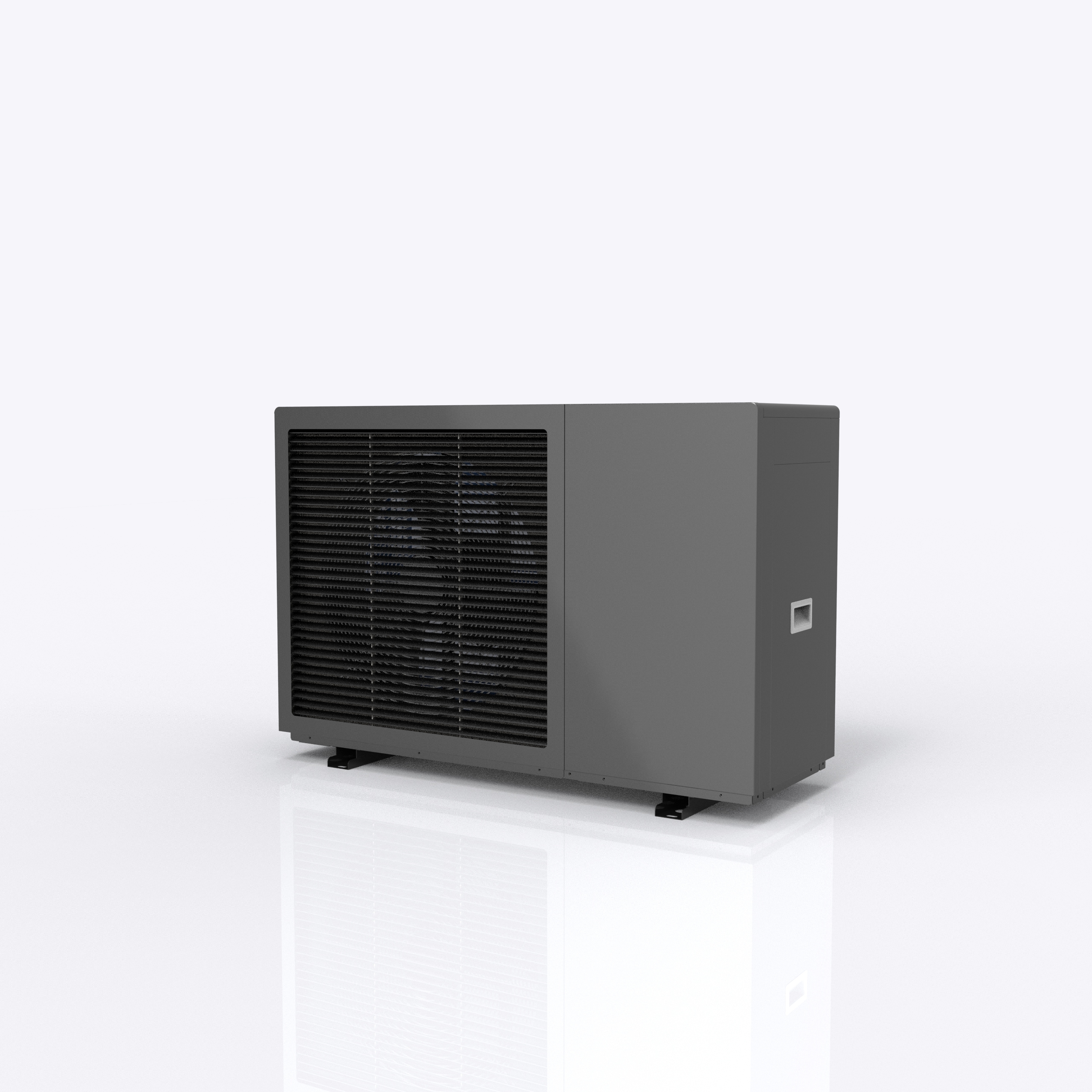

Experience sustainable style with our Keymark approved R290 EVI monoblock DC inverter heat pump – powered by low GWP R290 refrigerant and designed to green your customer's life.


















|
Type Code
|
BLN-006TC1
|
BLN-008TC1
|
BLN-008TC3
|
BLN-012TC1
|
BLN-012TC3
|
BLN-018TC1
|
BLN-018TC3
|
|||||||||
|
Power Supply
|
V/Ph/Hz
|
220~240/1/50
|
380~415/3/50
|
220~240/1/50
|
380~415/3/50
|
|||||||||||
|
Nominal Heating (Max)
(A7/6℃,W30/35℃) |
Heating Capacity
|
kW
|
2.92~9.10
|
4.1-12.1
|
4.1-12.1
|
4.30~15.20
|
4.30~15.20
|
7.24~22.1
|
7.24~22.1
|
|||||||
|
Power Input
|
kW
|
0.61~2.11
|
0.79-2.85
|
0.79-2.85
|
0.87~3.73
|
0.87~3.73
|
1.50~5.88
|
1.50~5.88
|
||||||||
|
Current Input
|
A
|
2.80~9.25
|
3.45-13.04
|
1.62-4.57
|
4.02~16.38
|
1.78~6.04
|
6.86~30.25
|
2.82~9.16
|
||||||||
|
COP
|
W/W
|
4.31-5.66
|
4.24-5.57
|
4.24-5.57
|
4.07-5.57
|
4.07-5.57
|
3.82-5.59
|
3.82-5.59
|
||||||||
|
Nominal Heating (Max)
(A7/6℃,W47/55℃) |
Heating Capacity
|
kW
|
2.99~8.16
|
4.05-12.15
|
4.05-12.15
|
4.25~14.55
|
4.25~14.55
|
6.36~19.45
|
6.36~19.45
|
|||||||
|
Power Input
|
kW
|
1.03~2.92
|
1.38-4.06
|
1.38-4.06
|
1.45~4.28
|
1.45~4.28
|
2.15~6.85
|
2.15~6.85
|
||||||||
|
Current Input
|
A
|
4.57~12.79
|
5.73-17.70
|
2.70-6.43
|
6.71~18.80
|
2.84~6.78
|
9.84~30.12
|
3.71~10.60
|
||||||||
|
COP
|
W/W
|
2.79-3.46
|
2,99-3.45
|
2,99-3.45
|
2.83-3.45
|
2.83-3.45
|
2.84-3.57
|
2.84-3.57
|
||||||||
|
Nominal Cooling (Max)
(A35/24℃,W12/7℃) |
Cooling Capacity
|
kW
|
1.38~5.70
|
3.65-8.59
|
3.65-8.59
|
3.65~11.04
|
3.65~11.4
|
4.55~17.20
|
4.55~17.20
|
|||||||
|
Power Input
|
kW
|
0.67~2.44
|
1.12-3.31
|
1.12-3.31
|
1.12~3.97
|
1.12~3.97
|
1.85~7.31
|
1.85~7.31
|
||||||||
|
Current Input
|
A
|
3.06~10.27
|
5.18-14.47
|
1.97-5.25
|
5.18~17.44
|
1.97~6.30
|
8.47~32.1
|
2.99~11.26
|
||||||||
|
ERP Level (Outlet water temp. at 35℃)
|
/
|
A+++
|
A+++
|
A+++
|
A+++
|
A+++
|
A+++
|
A+++
|
||||||||
|
MAX. input power
|
KW
|
3.50
|
5.40
|
5.85
|
5.40
|
5.85
|
7.50
|
10.50
|
||||||||
|
MAX. input current
|
A
|
15.00
|
25.00
|
10.00
|
25.00
|
10.00
|
35.00
|
17.00
|
||||||||
|
Refrigerant Type/Charge/GWP
|
/kg
|
R290/0.55/3
|
R290/1.05/3
|
R290/1.05/3
|
R290/1.05/3
|
R290/1.05/3
|
R290/1.4/3
|
R290/1.4/3
|
||||||||
|
Rated water flow
|
m³/h
|
1.00
|
1.40
|
1.40
|
2.06
|
2.06
|
3.10
|
3.10
|
||||||||
|
Fan quantity
|
/
|
1
|
1
|
1
|
1
|
1
|
2
|
2
|
||||||||
|

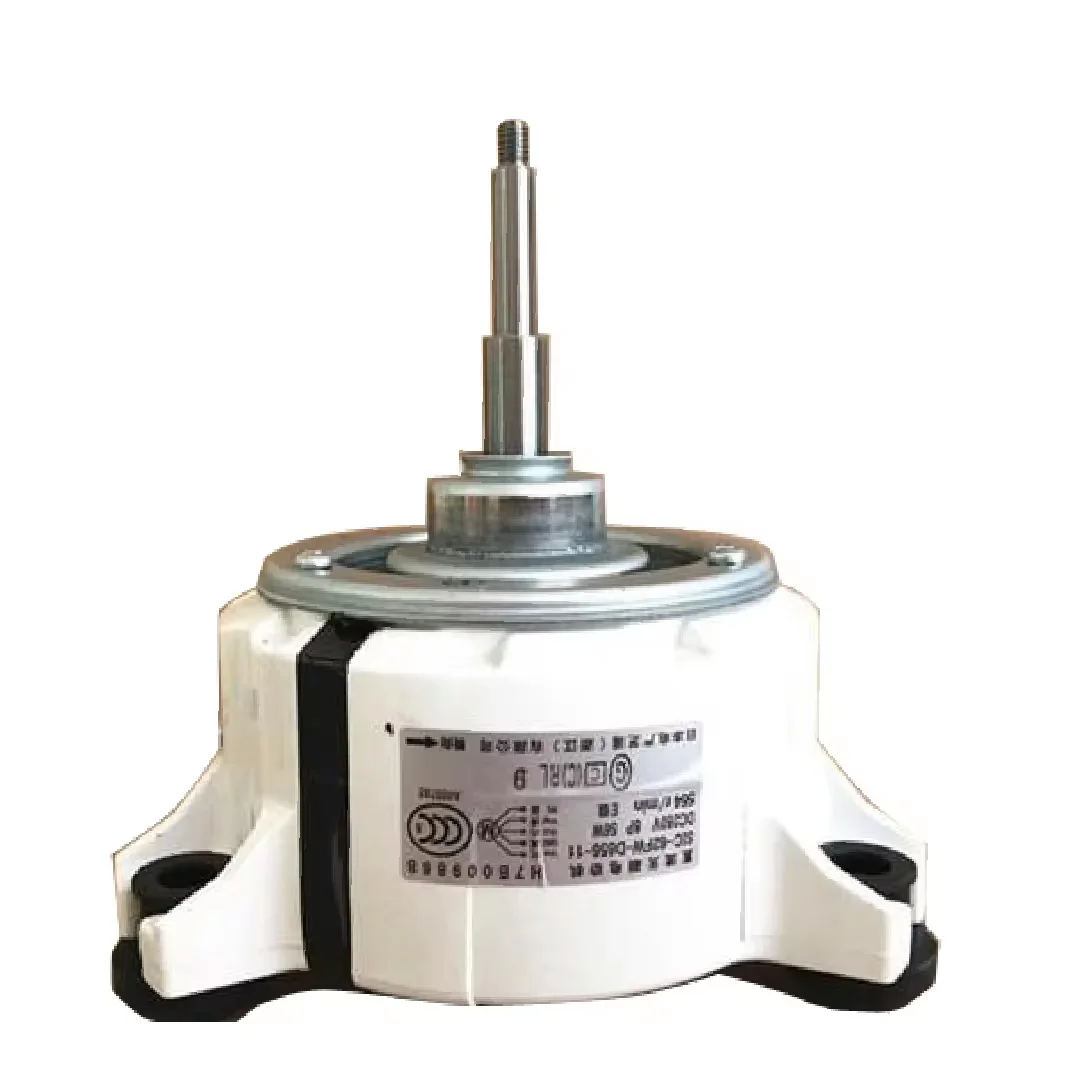

Fan motor type
|
/
|
DC inverter
|
||||||||||||||
|

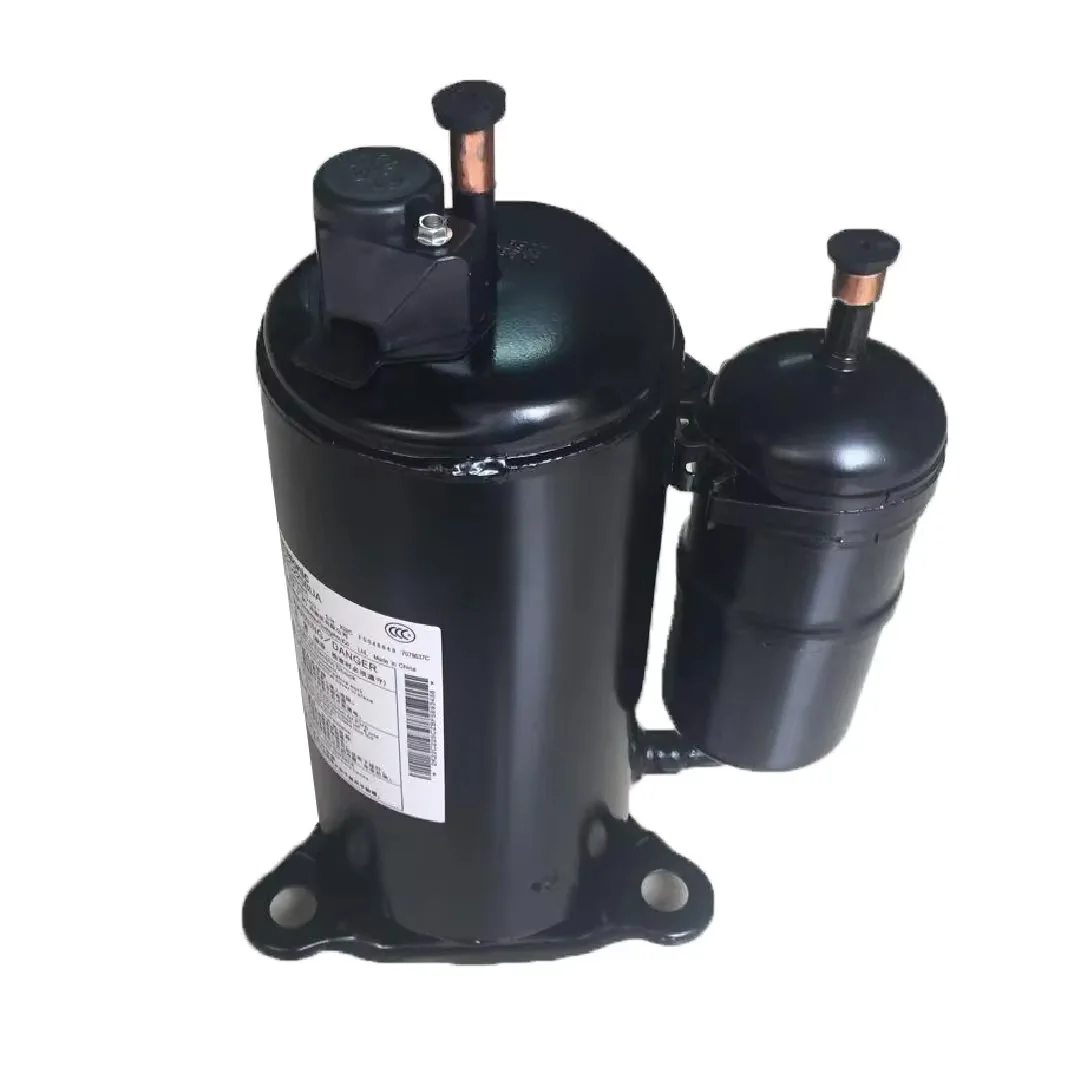

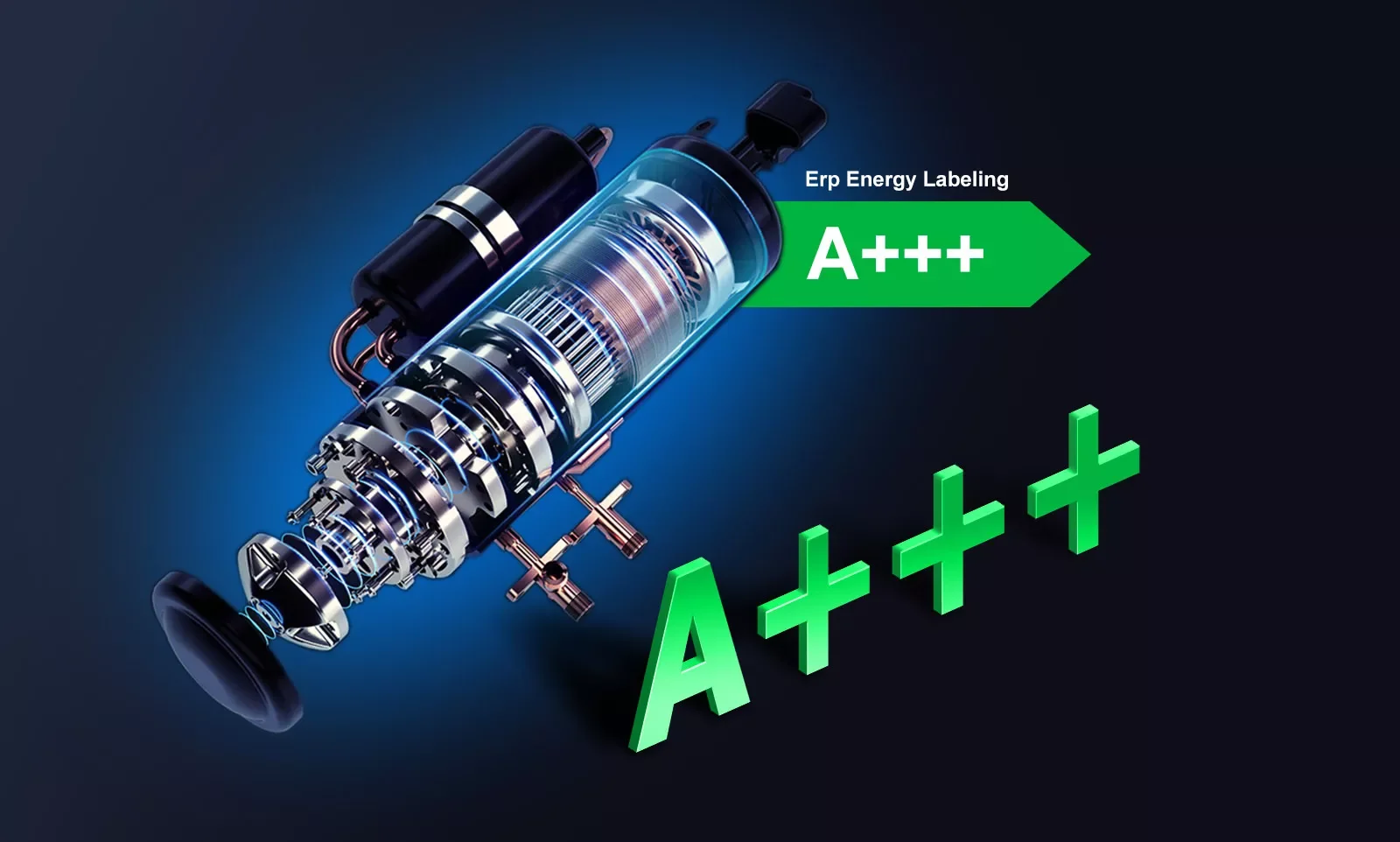

Compressor
|
/
|
DC inverter
|
||||||||||||||
|

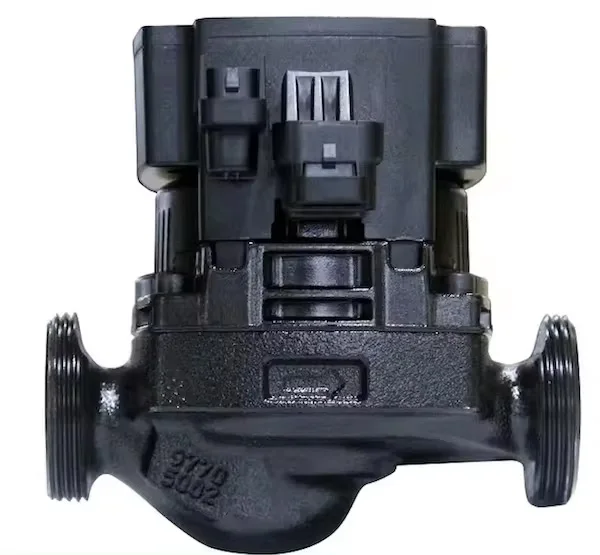

Circulation pump
|
/
|
Inverter type / Built-in
|
||||||||||||||
|
IP Class
|
/
|
IPX4
|
||||||||||||||
|
Sound pressure at 1m distance
|
dB(A)
|
46
|
43
|
43
|
53
|
54
|
56
|
56
|
||||||||
|
Max outlet water temperature
|
℃
|
75
|
75
|
75
|
75
|
75
|
75
|
75
|
||||||||
|
Water piping connections
|
/
|
G1
|
G1
|
G1
|
G1
|
G1
|
G1-DN 32 (1-1/4")
|
G1-DN 32 (1-1/4")
|
||||||||
|
Water pressure drop (max)
|
kPa
|
20
|
20
|
20
|
20
|
20
|
55
|
55
|
||||||||
|
Operating temperature range (Heating mode)
|
℃
|
-25~45
|
||||||||||||||
|
Operating temperature range (Cooling mode)
|
℃
|
16~45
|
||||||||||||||
|
Unpacked Dimensions (L x D x H )
|
mm
|
1187*418*805
|
1287*448*904
|
1287*448*904
|
1287*448*904
|
1287*448*904
|
1187*488*1456
|
1187*488*1456
|
||||||||
|
Packed Dimensions (L x D x H )
|
mm
|
1217*463*920
|
1317*493*1020
|
1317*493*1020
|
1317*493*1020
|
1317*493*1020
|
1217*538*1570
|
1217*538*1570
|
||||||||
|
Unpacked weight
|
kg
|
110
|
134
|
134
|
134
|
134
|
195
|
195
|
||||||||
|
Packed weight
|
kg
|
122
|
146
|
146
|
146
|
146
|
208
|
208
|
||||||||
