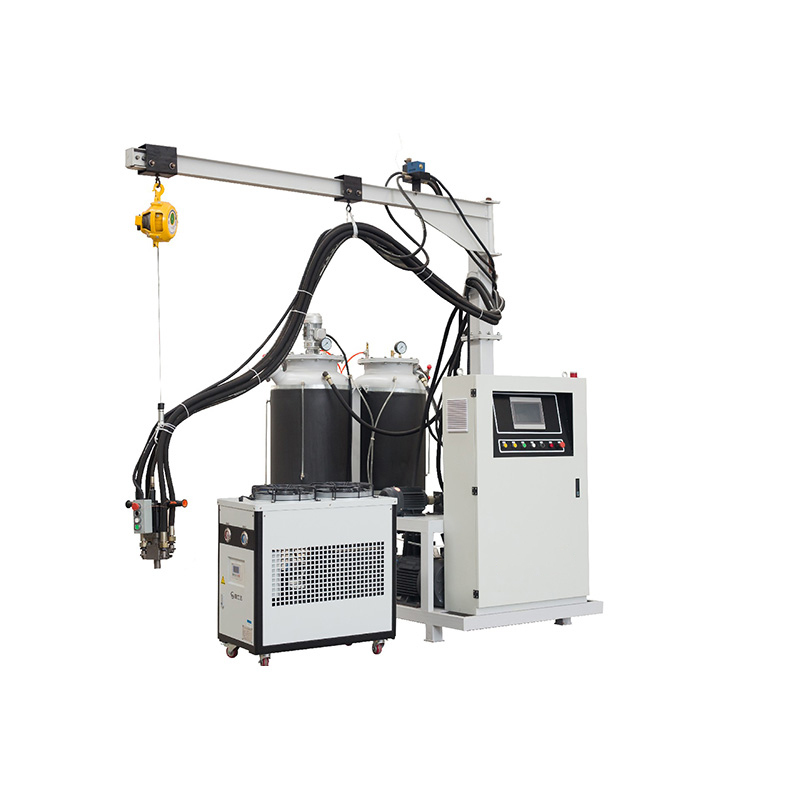

Incubator Polyurethane Foaming Machine
This series of foaming machine adopts a new design concept, to improve the operability, improve the use of stable new, improve the accuracy of filling, reduce the use of energy consumption as the design and development indicators, can meet the production and use of more products.
Product characteristics
1. Electrical control: Siemens PLC, Schneider accessories based electrical control system. Full modular integrated control of all processes, simple operation, intelligent stability.
2. Double constant temperature control: the use of double hot and cold - body machine, with hot and cold exchanger, to ensure that the original temperature is constant, error < soil 2°C, improve the quality of foaming products.
3. Fault self-inspection early warning system: The system can give early warning in advance, so that relevant parameters can be adjusted in time to avoid the appearance of defective products.
4. Mixing device: The use of self-cleaning/check/splash-proof/new V-shaped foam gun (3 times mixing function), beautiful structure, the operator with Siemens polyurethane special pump, accurate injection, good mixing effect.
Conditions of use
| Component | Viscosity | Foaming temperature ℃ | Mixing Ratio |
| A （Polyether polyols） | <2500 | 25±3 | 1:1.5-1.5:1 |
| B （Isocyanate） | 800~2500 | 25±3 | 1:1.5-1.5:1 |
Polyurethane Foaming Machine Parameters
|
MODEL |
Mixing ratio(1:1) (g/s) | MODEL |
Mixing ratio(2:1) (g/s) | ||
| Min | Max | Min | Max | ||
| PH(R/F)-10 | 15 | 100 |
PH(R/F)-20/10 |
20 |
200 |
| PH(R/F)-20 | 30 | 300 | |||
| PH(R/F)-40 | 50 | 560 | PH(R/F)-40/20 | 40 | 400 |
| PH(R/F)-100 | 150 | 1530 |
PH(R/F)-100/40 |
100 |
950 |
| PH(R/F)-150 | 300 | 2650 | |||
| PH(R/F)-300 | 600 | 5600 |
PH(R/F)-150/100 |
200 |
2100 |
| PH(R/F)-600 | 1200 | 11000 | |||
