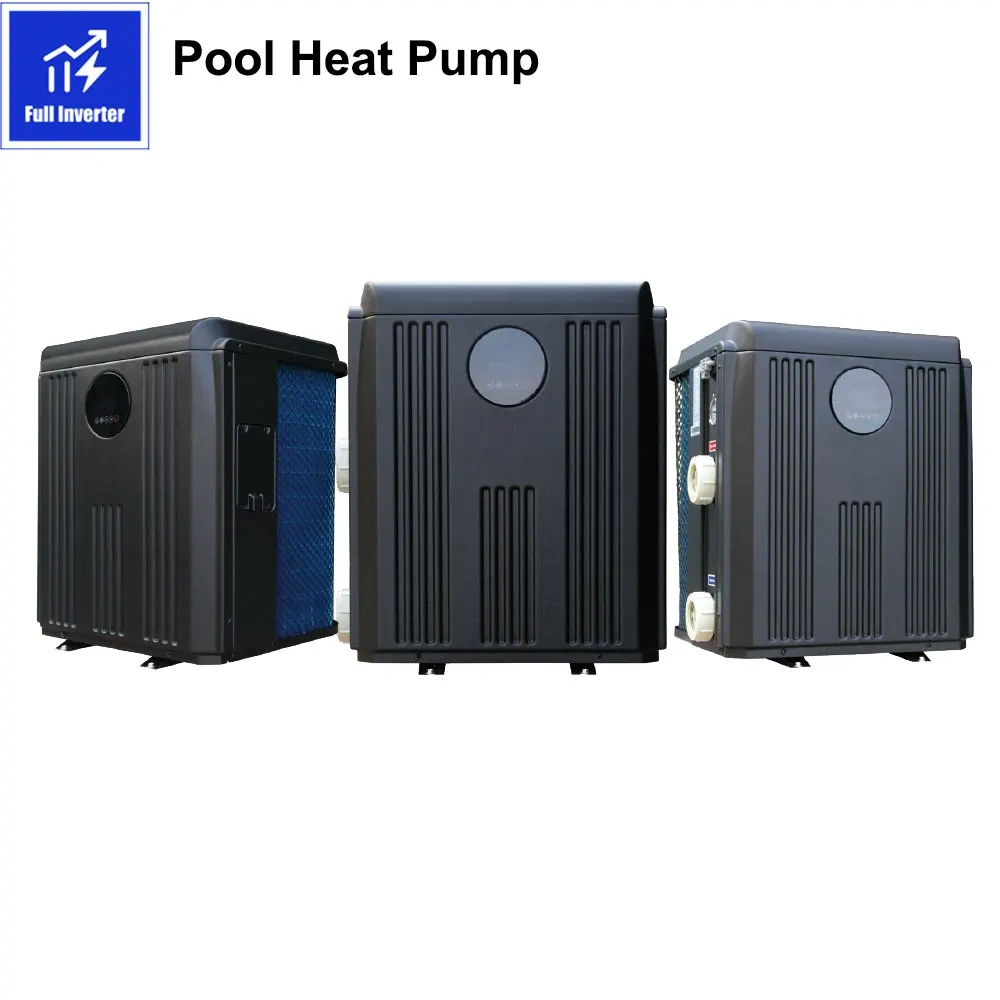

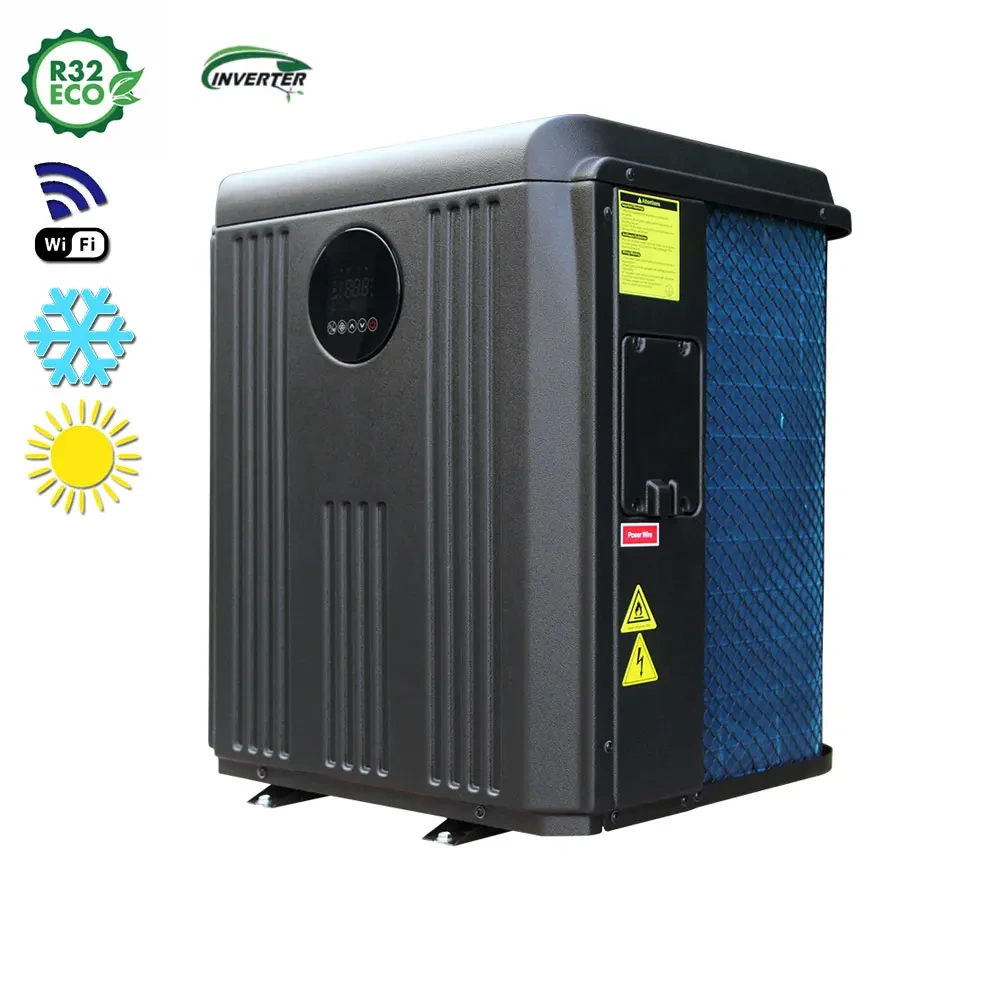

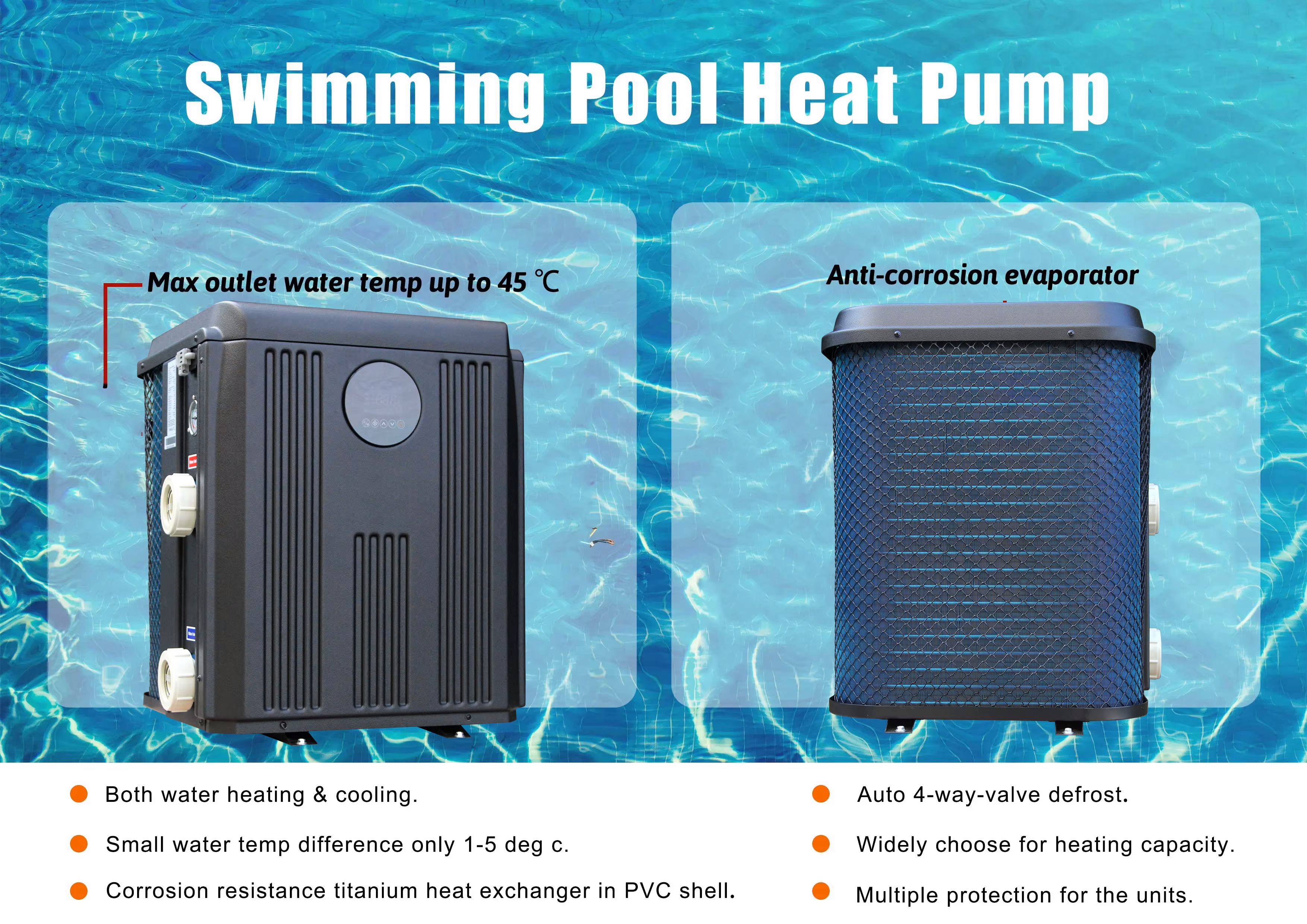

Looking for a reliable and energy-efficient solution for pool heating and cooling? Our High Efficiency R32 DC Inverter Pool Heat Pump is the ideal choice for both residential and commercial swimming pools. With its eco-friendly R32 refrigerant, this advanced heat pump system ensures minimal environmental impact by causing no depletion of the ozone layer. Whether you're heating a small home pool or a large commercial pool, we offer a wide range of heating capacities from 7kW to 35kW to meet your specific needs.
The R32 refrigerant used in this pool heat pump system is a modern, energy-efficient, and eco-friendly solution. Unlike older refrigerants, R32 has a significantly lower global warming potential (GWP) and zero ozone depletion potential, making it the ideal choice for sustainable pool heating.

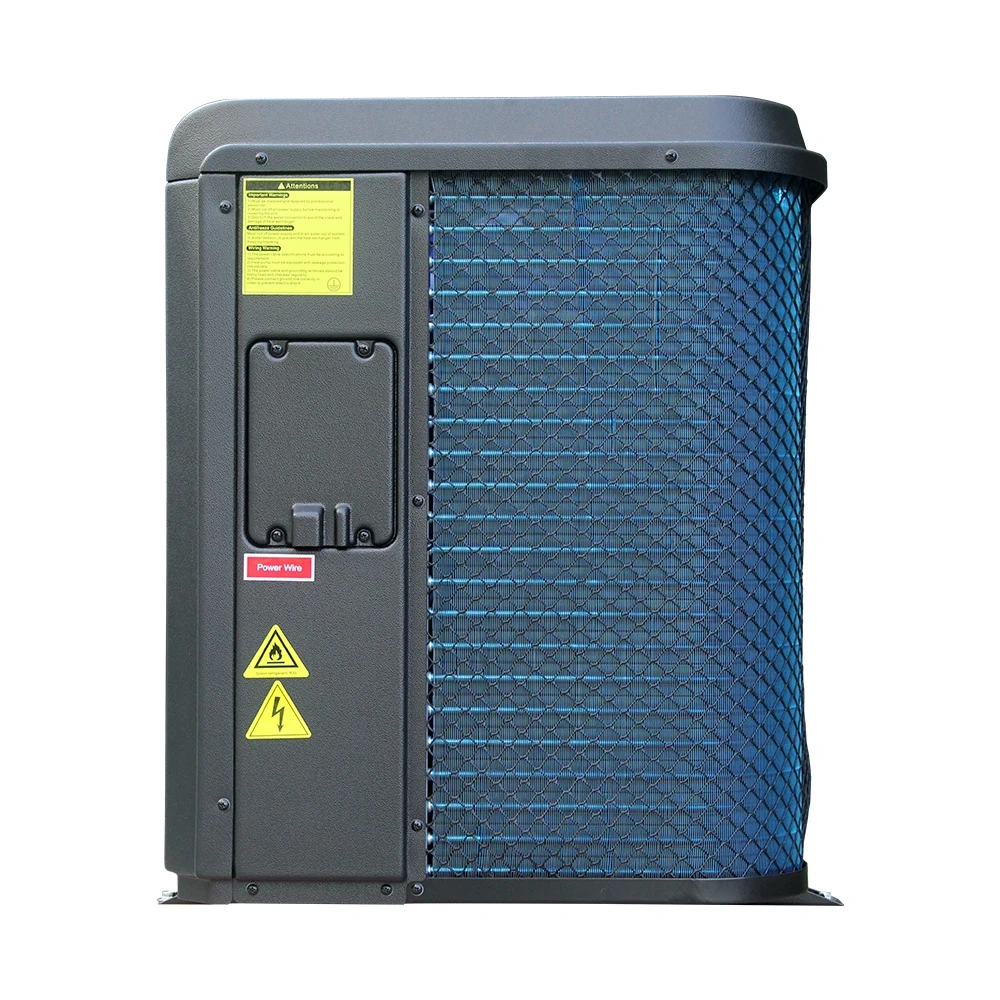

Designed with an ABS casing, this pool heat pump is highly resistant to corrosion, ensuring long-lasting performance even in the harshest environments. Whether it's exposed to pool chemicals, saltwater, or fluctuating weather conditions, the durable casing protects your investment for years to come.
Stay in control of your pool’s temperature at all times with the IoT (Internet of Things) technology integrated into the heat pump. This feature allows you to monitor and adjust the temperature settings remotely using your smartphone, tablet, or any other connected device, no matter where you are.
Equipped with a high-end Mitsubishi compressor, this pool heat pump guarantees stable and long-term performance, even under continuous use. The reliable compressor ensures that your system runs smoothly and efficiently, providing consistent heating and cooling throughout the year.
No matter the size of your pool, our R32 DC Inverter Pool Heat Pump offers a variety of heating capacities to ensure efficient performance. Choose from 7kW, 10kW, 13kW, 17kW, 21kW, 30kW, or 35kW depending on your needs. This versatile range makes it suitable for both small residential pools and large commercial installations.
Energy Efficiency: Save on energy bills with the latest inverter technology that adjusts to your pool's needs, maintaining ideal temperatures without overuse of electricity.
Durability: The ABS casing and Mitsubishi compressor ensure long-term reliability, even in extreme weather conditions.
Eco-Conscious: By using the R32 refrigerant, we support a greener future without compromising performance.
Flexible Options: With a variety of heating capacities to choose from, we provide the perfect solution for pools of any size—whether it’s a private home pool or a commercial-sized pool.
Smart Convenience: With built-in IoT control, you can easily monitor and adjust your heat pump settings remotely. Enjoy the convenience of managing your pool’s temperature wherever you go!
|

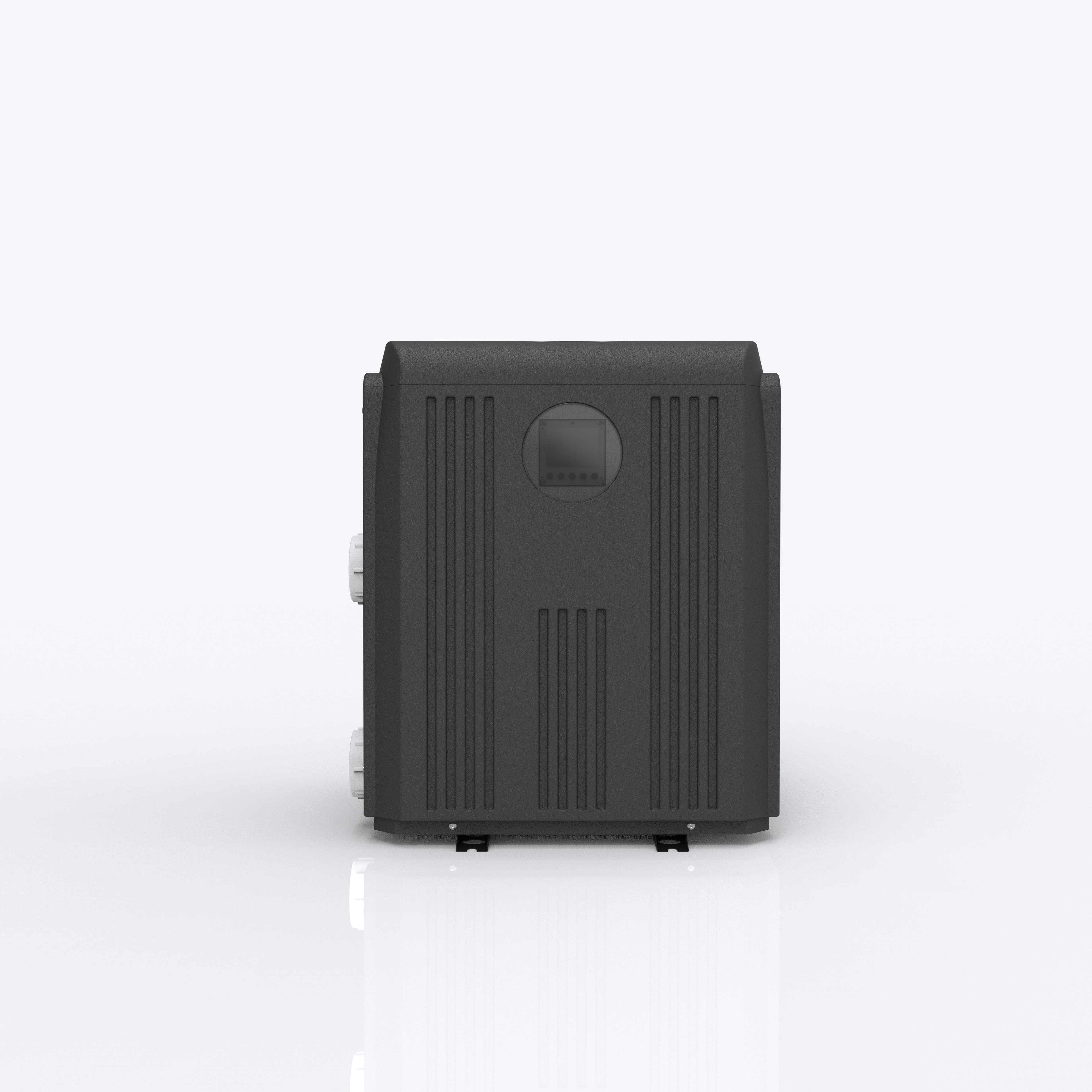

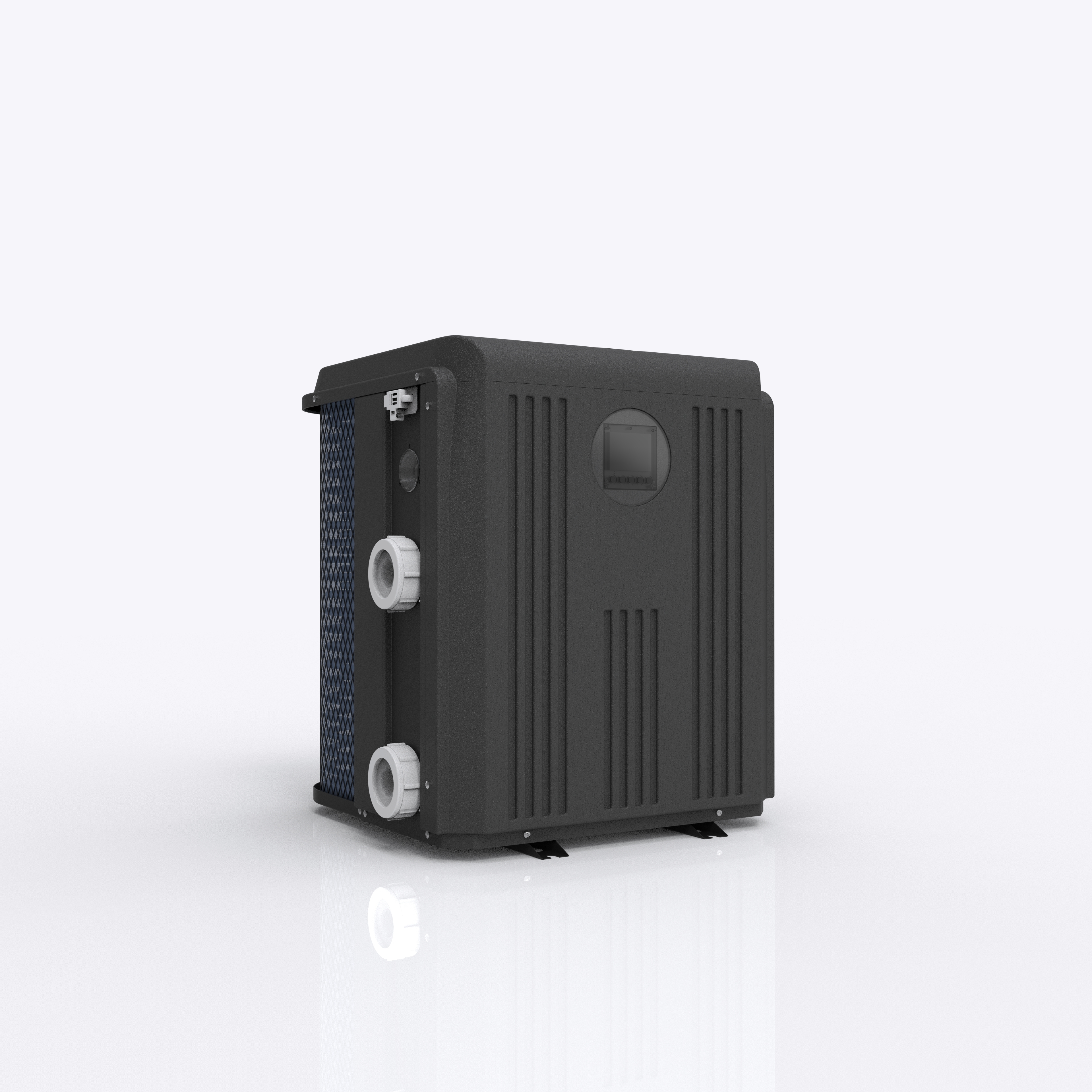

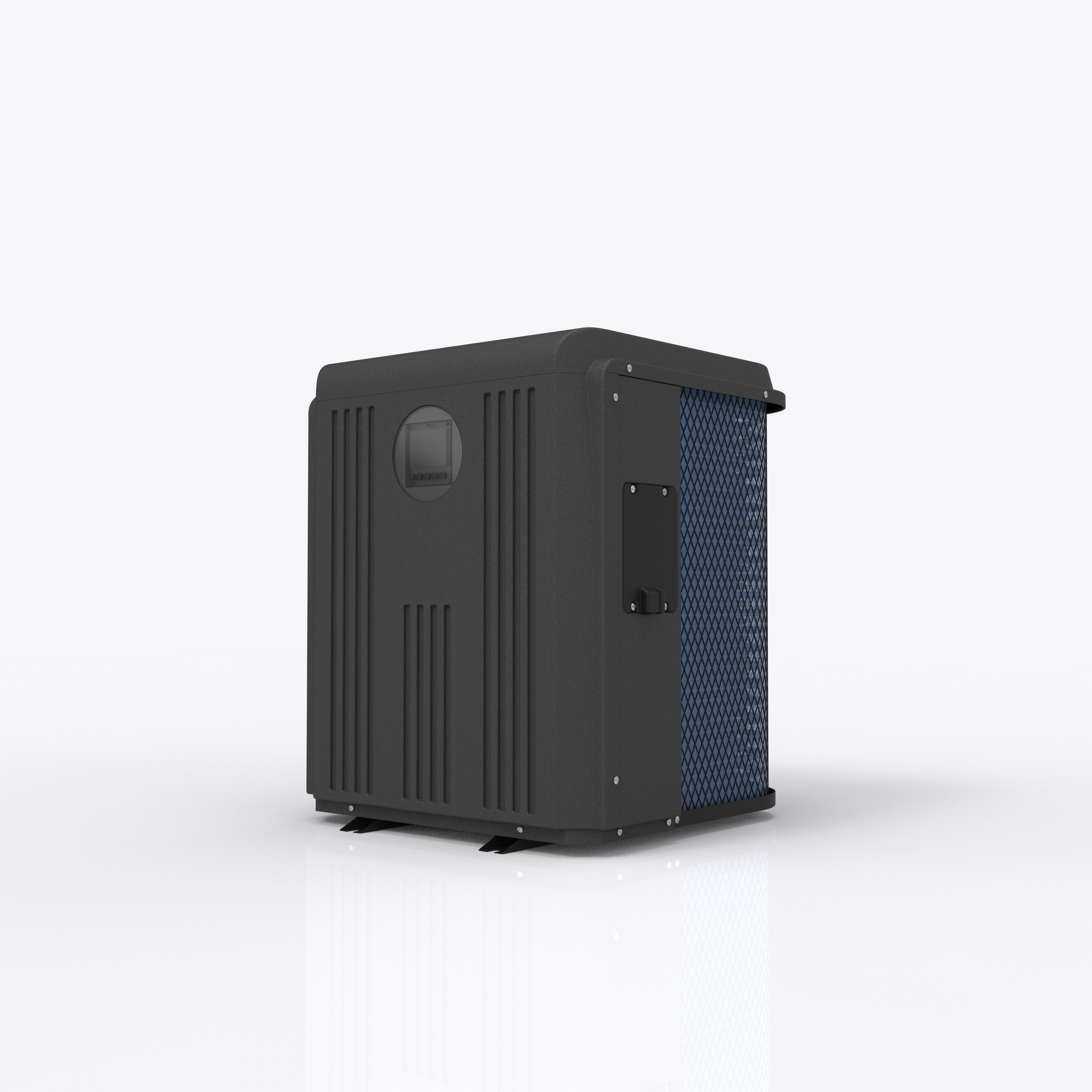

Top Series R32 Inverter Swimming Pool Heat Pump
|
||||
| Model No. | BYC-007TV1 | BYC-010TV1 | BYC-013TV1 | BYC-017TV1 |
| Capacity | 7kw | 10kw | 13kw | 17kw |
| Power supply | 220~240V/1/50 | |||
| Heating Capacity (kW) | 7.2~1.7 | 9.2~2.3 | 12.5~3.0 | 16.5~3.8 |
| Power Input (kW) |
1.06~0.11
|
1.35~0.15 | 1.84~0.19 | 2.43~0.24 |
| COP | 15.8~6.8 | 15.8~6.8 | 16~6.8 | 15.8~6.8 |
| * Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||
|
Heating Capacity (kW)
|
5.9~1.4
|
7.4~1.9
|
9.5~2.3
|
13.1~3
|
|
Power Input (kW)
|
1.2~0.18
|
1.51~0.25
|
1.9~0.30
|
2.67~0.39
|
|
COP
|
7.6~4.9
|
7.6~4.9
|
7.6~5
|
7.6~4.9
|
|
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
|
||||
|
Cooling Capacity (kW)
|
4.2~1.0
|
5.3~1.3
|
7.2~1.7
|
9.4~2.1
|
|
Power Input (kW)
|
1.11~0.15
|
1.4~0.19
|
1.89~0.25
|
2.47~0.31
|
|
EER
|
6.6~3.8
|
6.7~3.8
|
6.7~3.8
|
6.7~3.8
|
|
* General data
|
||||
|
Power supply
|
220~240V/1/50
|
|||
|
Max Power Input (kW)
|
1.45
|
1.75
|
2.2
|
2.5
|
|
Max Current (A)
|
7.1
|
8.3
|
10.2
|
11.9
|
|
Water Flow Volume (m3/h)
|
2.5
|
3.5
|
4.5
|
5.5
|
|
Refrigerant
|
R32
|
|||
|
Heat Exchanger
|
Titanium
|
|||
|
Air Flow Direction
|
vertical
|
|||
|
Kind of defrost
|
by 4 way valve
|
|||
|
Working temp. range (℃)
|
-15~43
|
|||
|
Casing Material
|
ABS
|
|||
|
Water Proof Level
|
IPX4
|
|||
|
Noise level 1m dB(A)
|
39~49
|
40~52
|
42~53
|
43~55
|
|
Noise level 10m dB(A)
|
20~29
|
20~32
|
22~33
|
23~35
|
|
Net Weight (kg)
|
44
|
46
|
55
|
57
|
|
Gross Weight (kg)
|
55
|
57
|
68
|
70
|
|
Net Dimensions (mm)
|
530*530*640
|
650*650*770
|
||
|
Package Dimensions (mm)
|
560*600*780
|
680*720*910
|
||
