Energy Efficiency: Save on energy bills with the latest inverter technology that adjusts to your pool's needs, maintaining ideal temperatures without overuse of electricity.

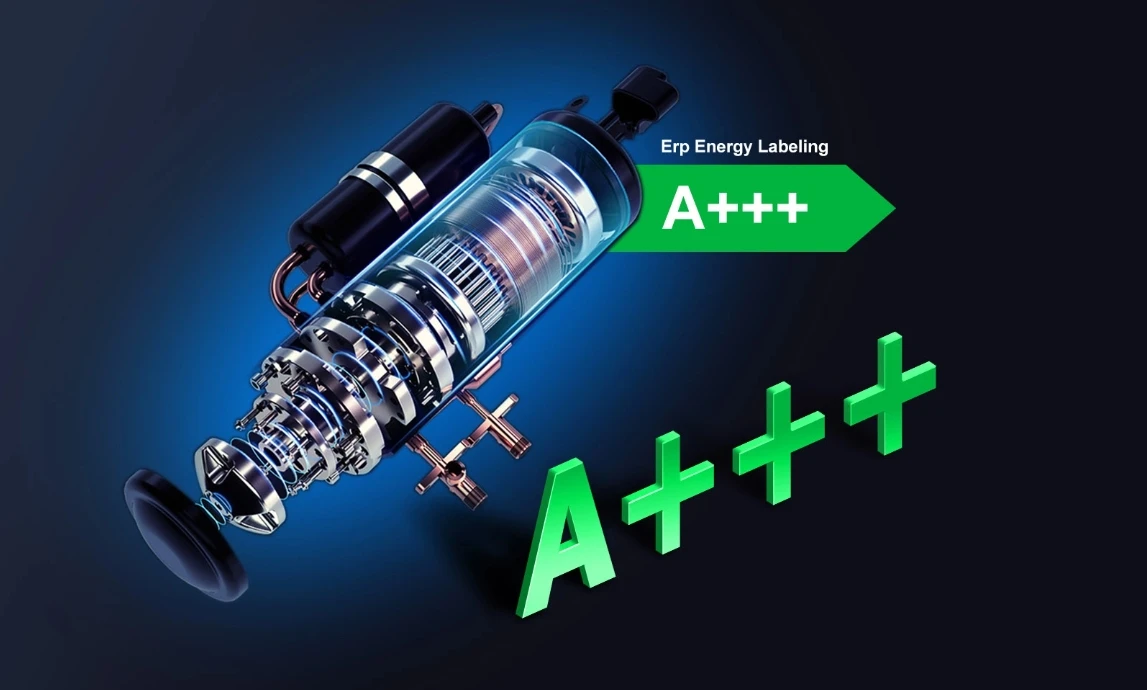

Durability: The ABS casing and Mitsubishi compressor ensure long-term reliability, even in extreme weather conditions.
Eco-Conscious: By using the R32 refrigerant, we support a greener future without compromising performance.
Flexible Options: With a variety of heating capacities to choose from, we provide the perfect solution for pools of any size—whether it’s a private home pool or a commercial-sized pool.

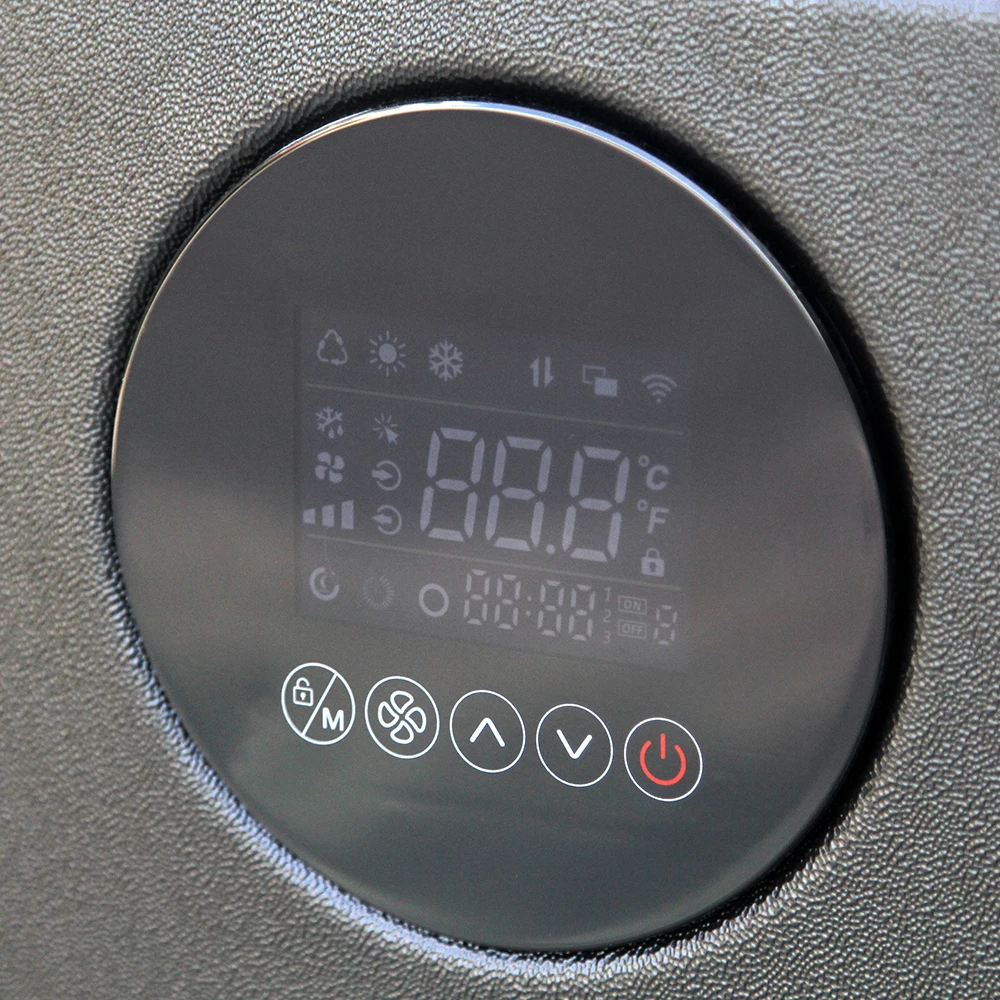

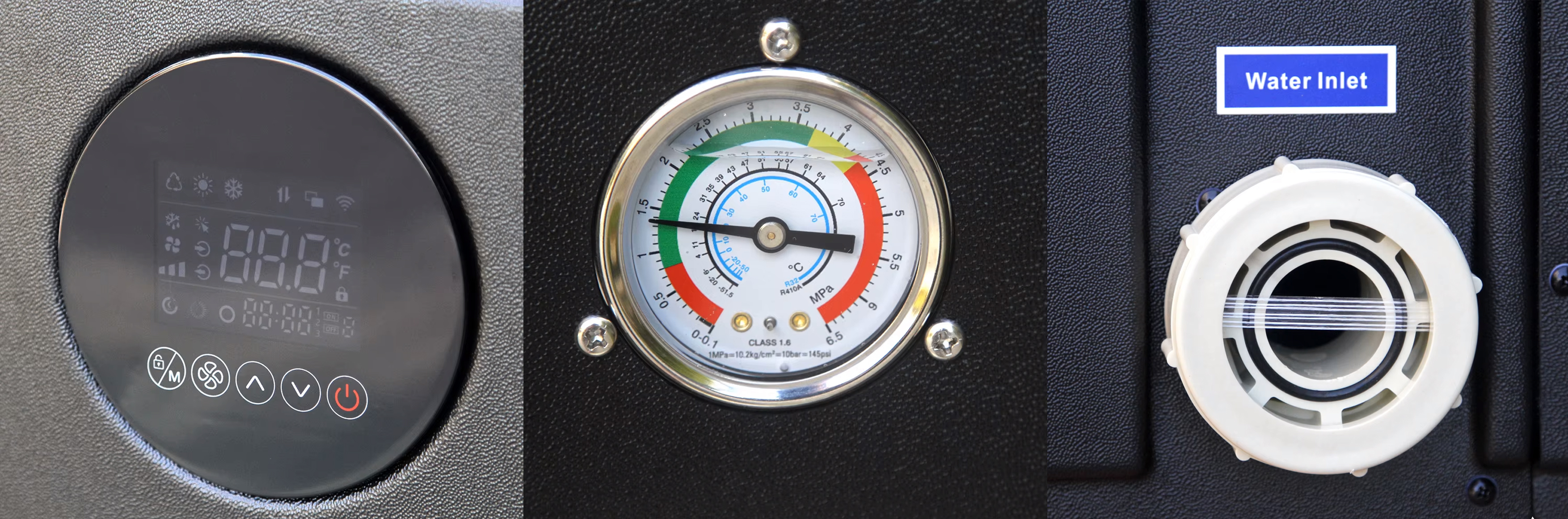

Smart Convenience: With built-in IoT control, you can easily monitor and adjust your heat pump settings remotely. Enjoy the convenience of managing your pool’s temperature wherever you go!
|

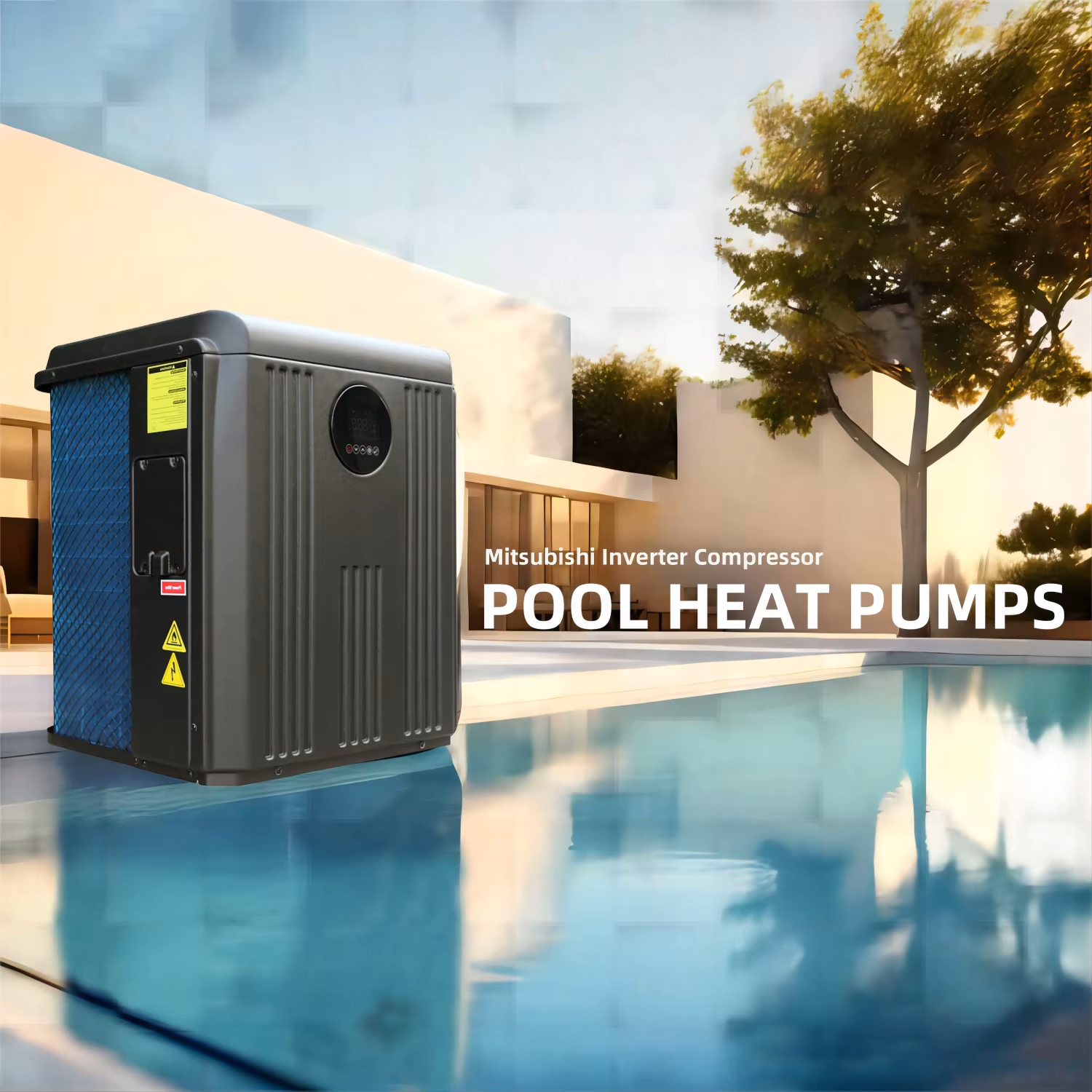

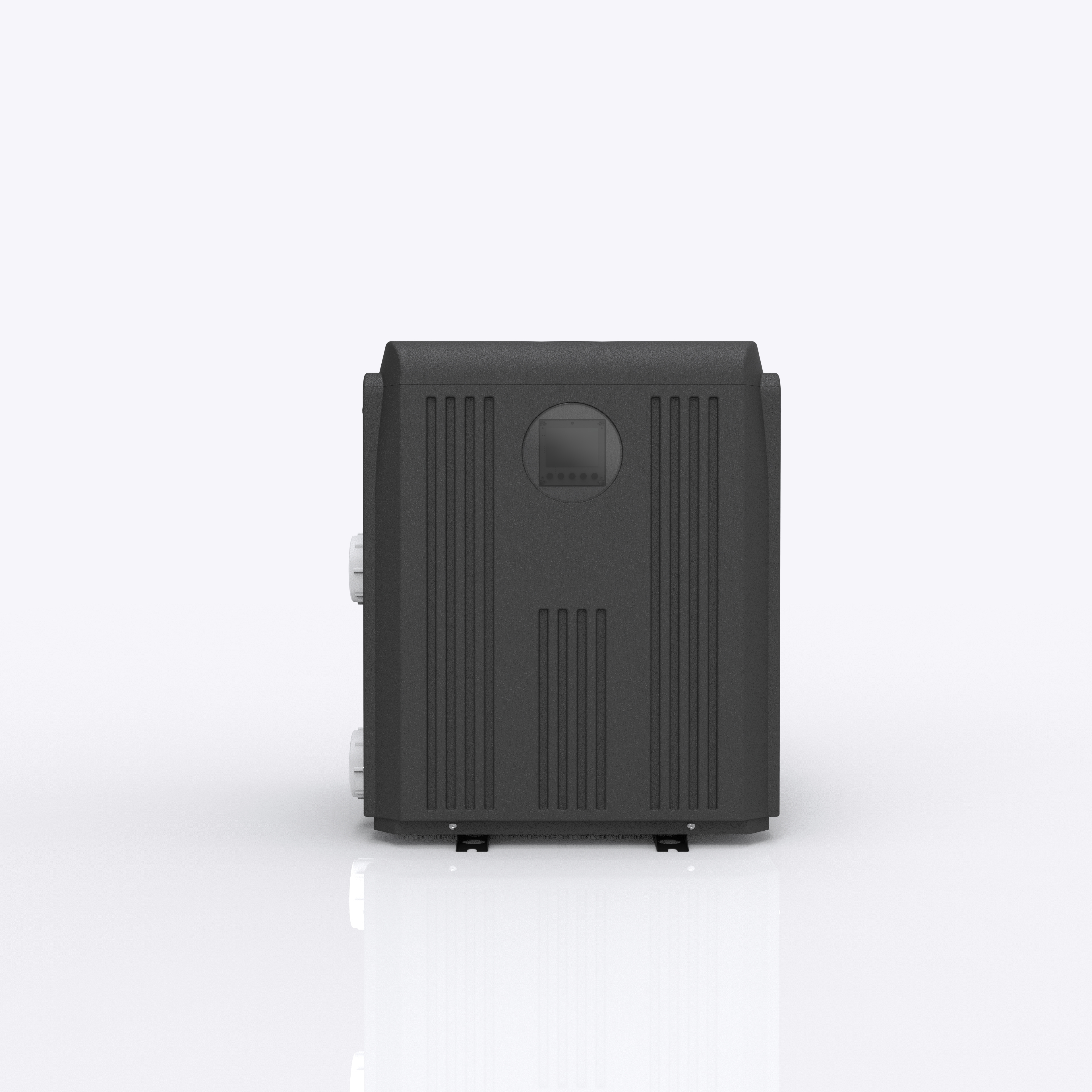

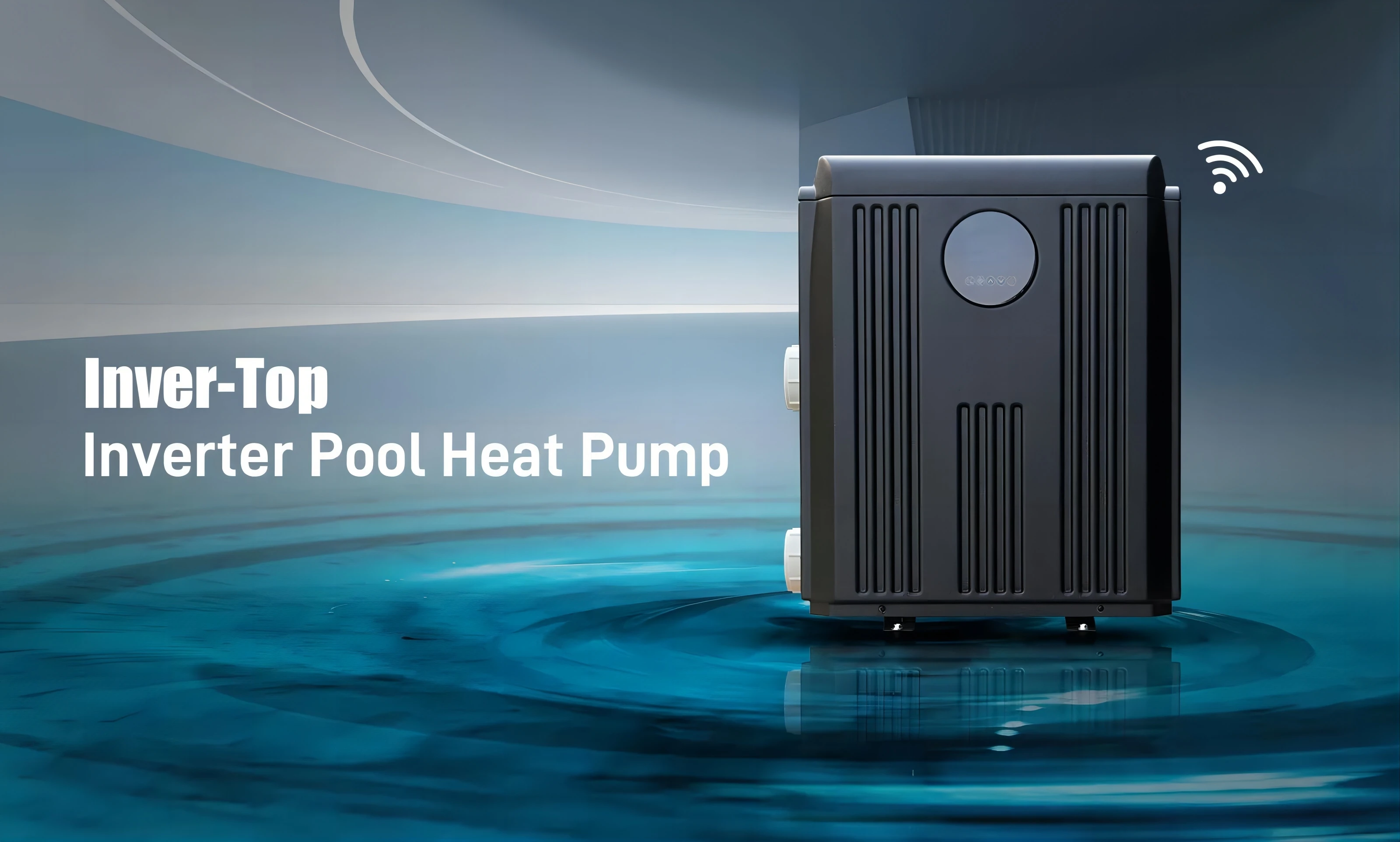

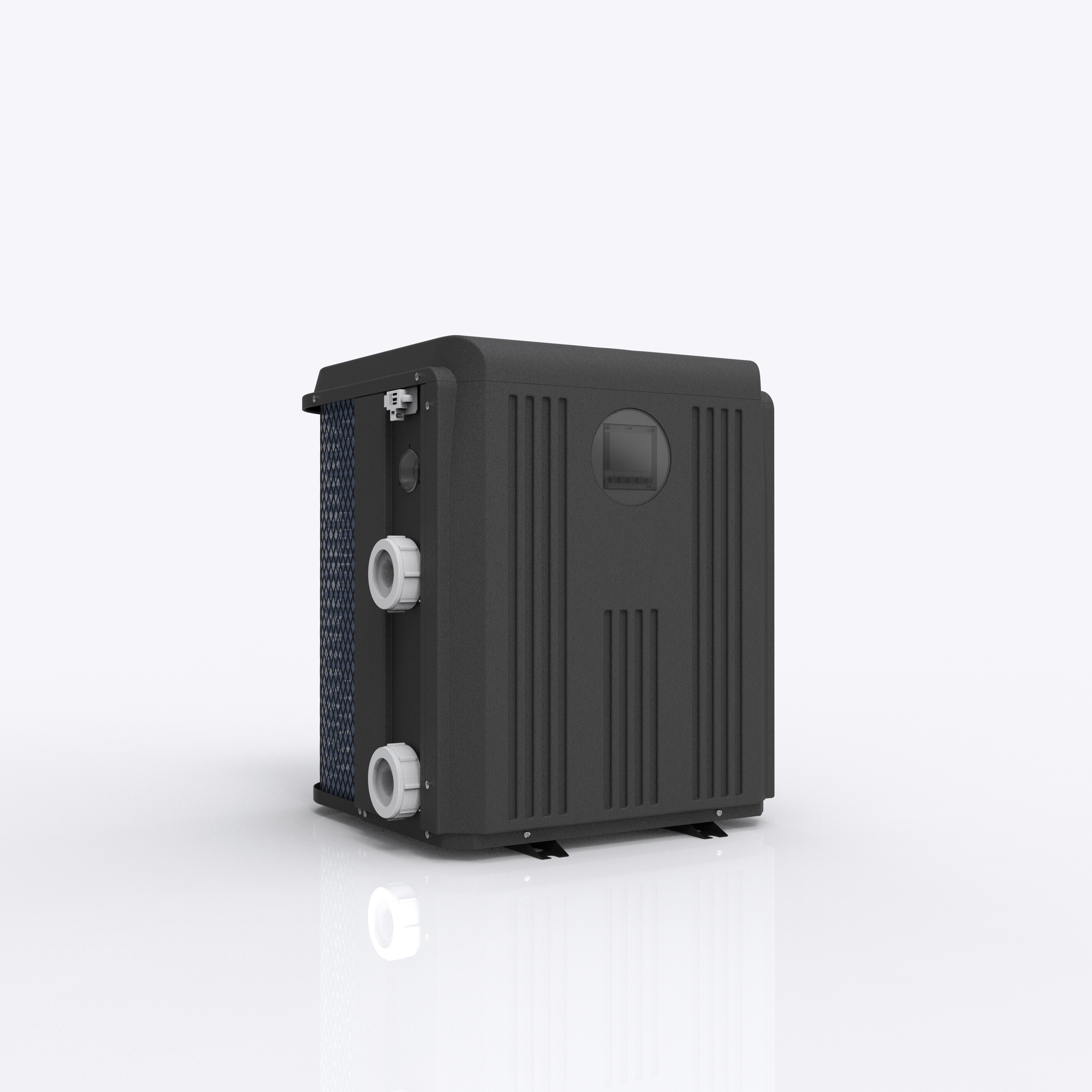

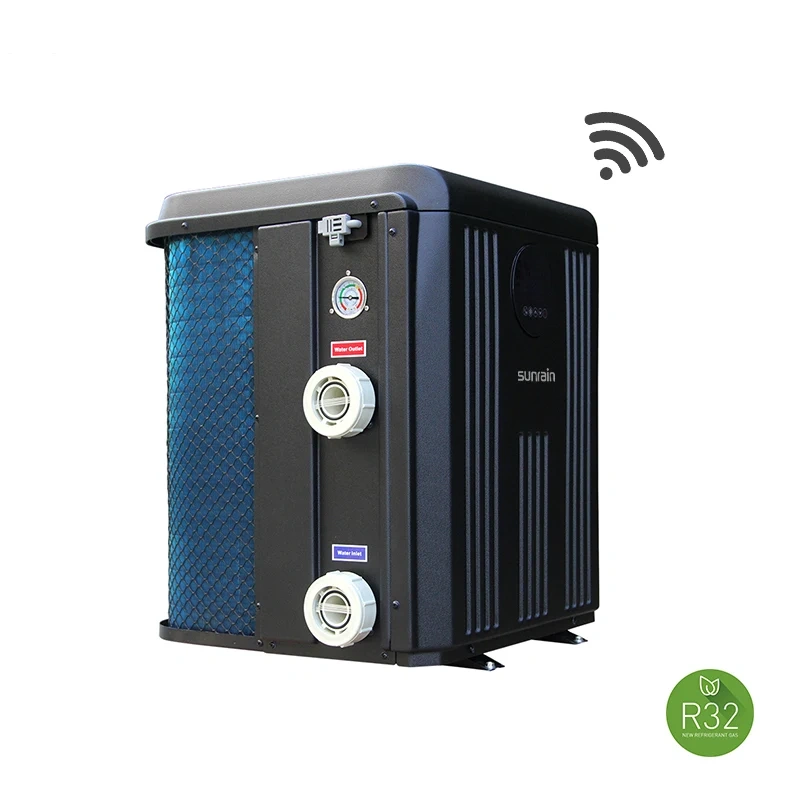

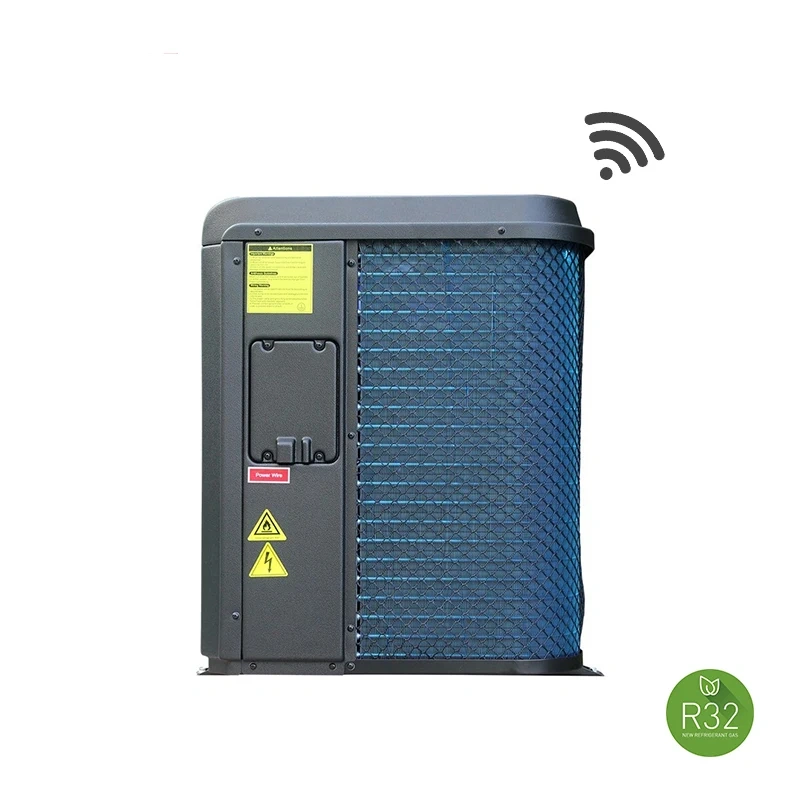

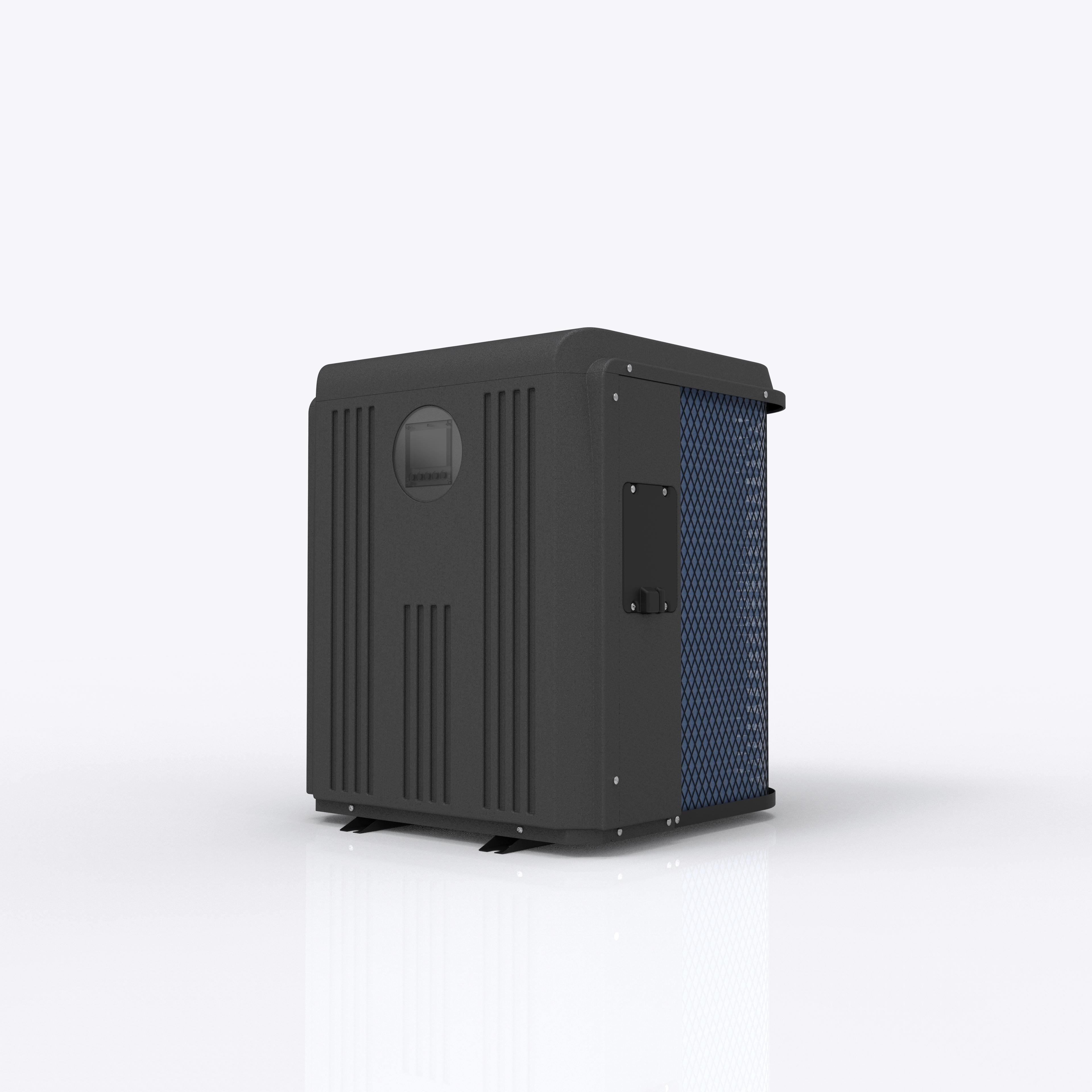

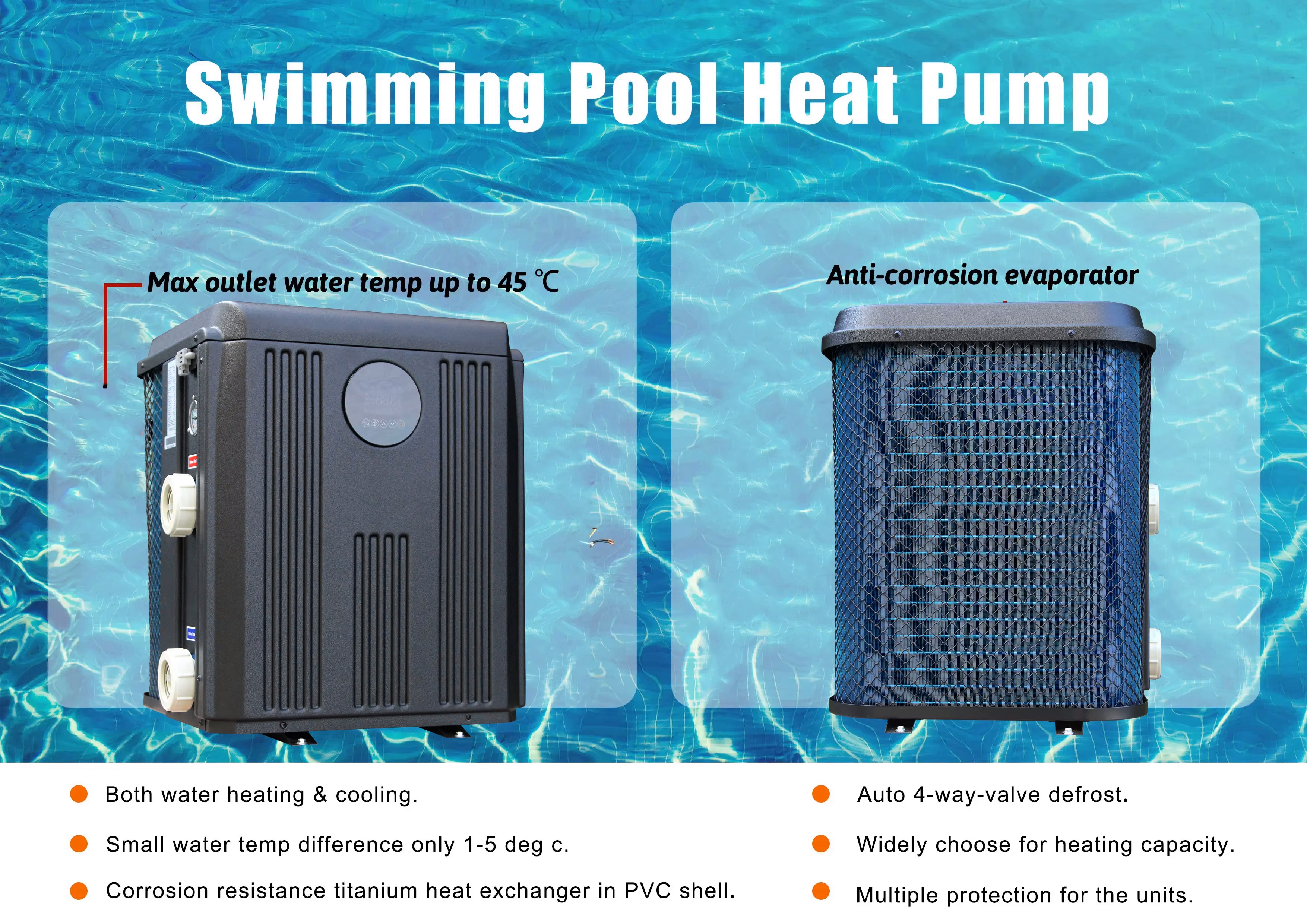

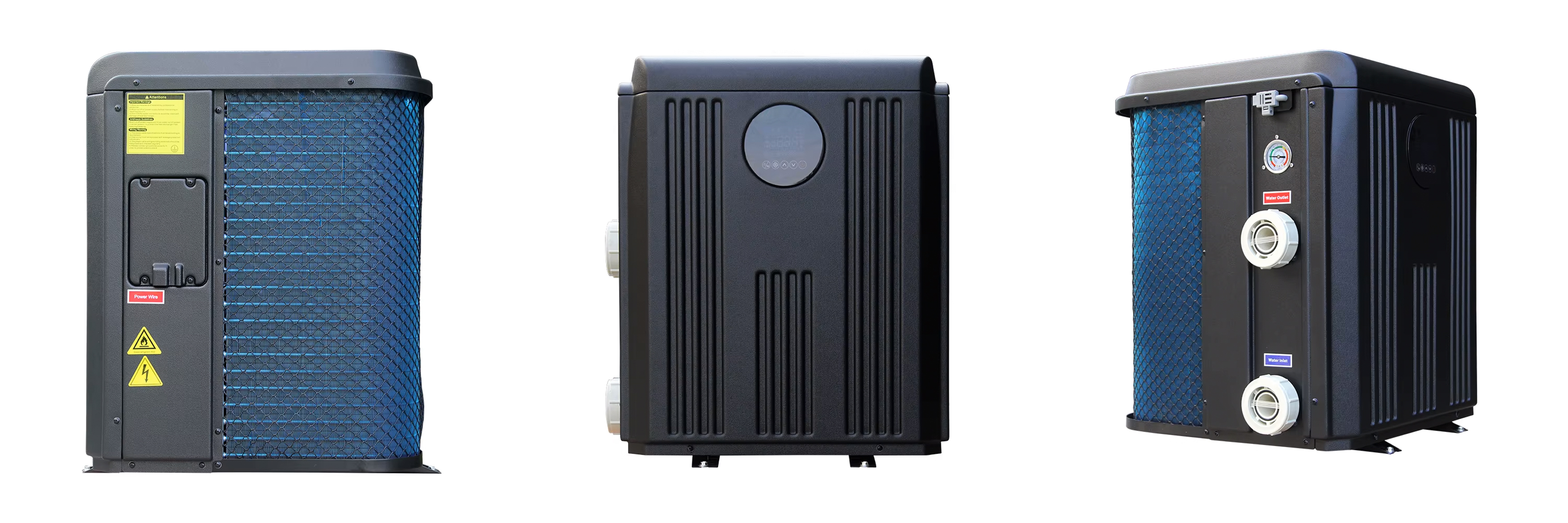

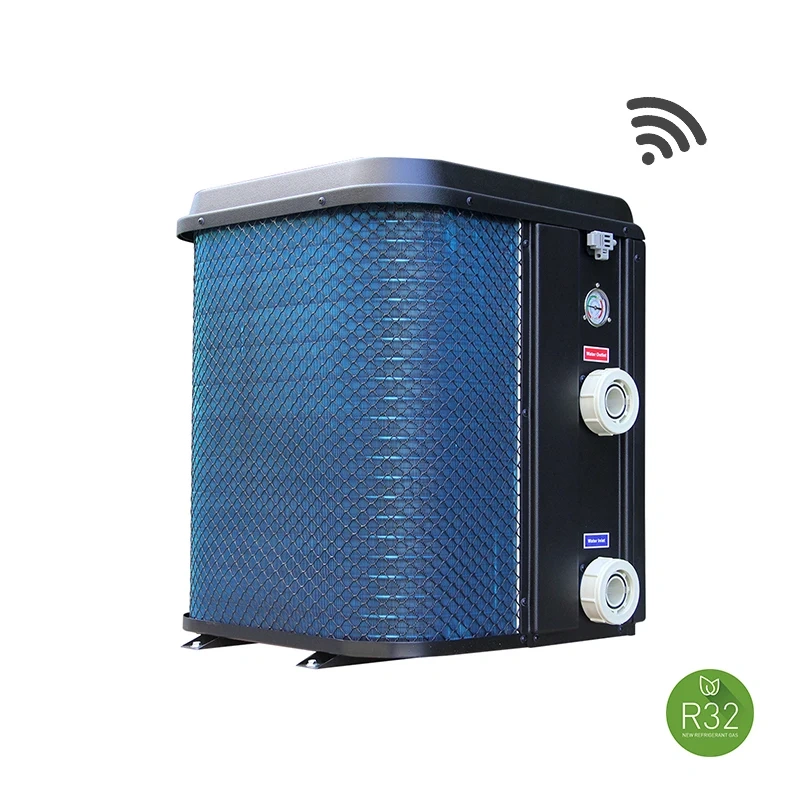

Top Series R32 Inverter Swimming Pool Heat Pump
|
||||
| Model No. | BYC-007TV1 | BYC-010TV1 | BYC-013TV1 | BYC-017TV1 |
| Capacity | 7kw | 10kw | 13kw | 17kw |
| Power supply | 220~240V/1/50 | |||
| Heating Capacity (kW) | 7.2~1.7 | 9.2~2.3 | 12.5~3.0 | 16.5~3.8 |
| Power Input (kW) |
1.06~0.11
|
1.35~0.15 | 1.84~0.19 | 2.43~0.24 |
| COP | 15.8~6.8 | 15.8~6.8 | 16~6.8 | 15.8~6.8 |
| * Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||
|
Heating Capacity (kW)
|
5.9~1.4
|
7.4~1.9
|
9.5~2.3
|
13.1~3
|
|
Power Input (kW)
|
1.2~0.18
|
1.51~0.25
|
1.9~0.30
|
2.67~0.39
|
|
COP
|
7.6~4.9
|
7.6~4.9
|
7.6~5
|
7.6~4.9
|
|
* Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out
|
||||
|
Cooling Capacity (kW)
|
4.2~1.0
|
5.3~1.3
|
7.2~1.7
|
9.4~2.1
|
|
Power Input (kW)
|
1.11~0.15
|
1.4~0.19
|
1.89~0.25
|
2.47~0.31
|
|
EER
|
6.6~3.8
|
6.7~3.8
|
6.7~3.8
|
6.7~3.8
|
|
* General data
|
||||
|
Power supply
|
220~240V/1/50
|
|||
|
Max Power Input (kW)
|
1.45
|
1.75
|
2.2
|
2.5
|
|
Max Current (A)
|
7.1
|
8.3
|
10.2
|
11.9
|
|
Water Flow Volume (m3/h)
|
2.5
|
3.5
|
4.5
|
5.5
|
|
Refrigerant
|
R32
|
|||
|

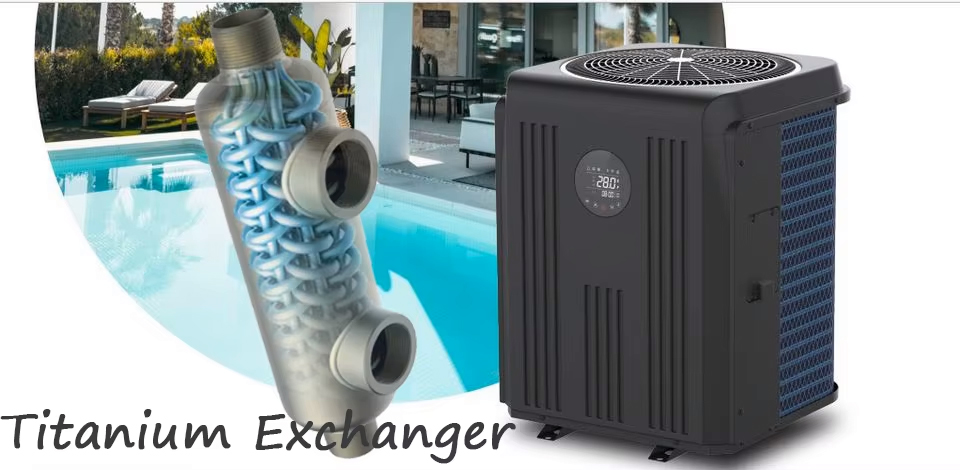

Heat Exchanger
|
Titanium
|
|||
|
Air Flow Direction
|
vertical
|
|||
|
Kind of defrost
|
by 4 way valve
|
|||
|
Working temp. range (℃)
|
-15~43
|
|||
|
Casing Material
|
ABS
|
|||
|
Water Proof Level
|
IPX4
|
|||
|
Noise level 1m dB(A)
|
39~49
|
40~52
|
42~53
|
43~55
|
|
Noise level 10m dB(A)
|
20~29
|
20~32
|
22~33
|
23~35
|
|
Net Weight (kg)
|
44
|
46
|
55
|
57
|
|
Gross Weight (kg)
|
55
|
57
|
68
|
70
|
|
Net Dimensions (mm)
|
530*530*640
|
650*650*770
|
||
|
Package Dimensions (mm)
|
560*600*780
|
680*720*910
|
||
